Coated paper, made by applying a coating to base paper, boasts excellent optical and printing properties. It is mainly used for printing magazines, books, trademarks, packaging, and product catalogs. While international names vary, some are standardized domestically, including newsprint, dictionary paper, copperplate paper, cast-coated paper, offset printing paper, offset book paper, writing paper, single-sided writing paper, book cover paper, and corrugated medium.

Aug 7th,2025 141 浏览量

Introduction to paper used for color boxes

1. Coated paper
The so-called coated paper is produced by applying a layer of coating material onto the base paper, endowing the paper with excellent optical properties and printing performance. It is primarily utilized for printing publications such as magazines and books, as well as trademarks, packaging, and product catalogs.
The names of these products vary across countries, but some of them have been standardized domestically. Among them, the more commonly used ones include newsprint, dictionary paper, copperplate paper, cast-coated paper, offset printing paper, offset book paper, writing paper, single-sided writing paper, book cover paper, corrugated medium, cardboard, kraft paper, striped kraft paper, mika paper, white cardboard, single-sided white board, single-sided coated white board, cast-coated white board, and thick board. For imported products that do not have official names in China or newly developed products domestically, they can be named based on their purposes or characteristics. Due to geographical differences, Hong Kong and the mainland use varying names for these products. Table 1-9 lists some of these names for comparison.
Table 21 Comparison Table of Paper Product Naming in Hong Kong and the Mainland

Hong Kong	Specific Restrictions	Mainland China
Book Paper	- Quantitative range: 60 - 150 g/m², specially for offset printing machines to print color pictorials, pictures, illustrations, covers, trademarks, etc. Low - quantitative paper is mostly used for printing the text of books and periodicals - Quantitative range: 45 - 80 g/m², mainly for writing in daily life, and also for printing and typing	Offset Paper Writing Paper
Colored Book Paper	- Quantitative range: 45 - 80 g/m², mainly for writing in daily life, and also for printing and typing - Quantitative > 80 g/m²	Colored Writing Paper No corresponding name yet
Art Paper		Coated Paper
Matt Art Paper		Matt Coated Paper
Double - sided Art Paper		Double - sided Coated Paper
Copper - plate Board		Coated White Cardboard

continued Table

Hong Kong	Specific Restrictions	Mainland China
White Cardboard	- White top (made from bleached chemical pulp), white bottom (made from bleached chemical pulp), white core or light yellow core - White top (made from bleached chemical pulp), white bottom (made from bleached chemical pulp), white core or light yellow core, surface 经过涂布 - White top (made from bleached chemical pulp), white bottom (made from bleached chemical pulp), gray core (made from waste paper pulp) - White top (made from bleached chemical pulp), white bottom (made from bleached chemical pulp), gray core (made from waste paper pulp), single - side 经过涂布 - White top (made from bleached chemical pulp), gray bottom (made from waste paper pulp), gray core (made from waste paper pulp) - White top (made from bleached chemical pulp), white bottom (made from bleached chemical pulp), gray core (made from waste paper pulp), single - side 经过涂布 - White top (made from bleached chemical pulp), yellow bottom (made from unbleached sulfate wood pulp or with added waste paper pulp, or all waste paper pulp), single - side 经过涂布 - White top (made from bleached chemical pulp), yellow bottom (made from unbleached sulfate wood pulp or with added waste paper pulp, or all waste paper pulp), surface 经过涂布	White Cardboard Coated White Cardboard White - bottom White Board, referred to as White Board Single - side Coated White - bottom White Board, referred to as Single - side Coated White Board Gray - bottom White Board, referred to as White Board Single - side Coated Gray - bottom White Board, referred to as Single - side Coated White Board White - faced Straw Board White - faced Coated Straw Board
Single - side Adhesive Board	Core is white or light yellow Gray core (made from waste paper pulp)	Single - side Coated White Cardboard Single - side Coated White Board
Double - side Adhesive Board		Double - side Coated White Cardboard
Powder - gray Board		Single - side Coated Gray - bottom White Board
Gray Bottom/ Double - gray Board		Gray Board
Kraft Paper	Quantitative in 40 - 120g/m², high - grade wrapping paper, high strength, used for packaging goods, or for further processing to make 卷宗，file bags, envelopes, etc. (100% unbleached sulfate softwood pulp as raw material, or proportioned with certain other pulp) Specially used as the top layer paper for laminating with corrugated core to make corrugated cardboard If adding more waste pulp or using all waste paper pulp, low strength, used for packaging goods	Kraft Paper Straw Board (no clear statement for low quantitative) Wrapping Paper
Kraft Board		Straw Board
Powder - faced Board		White - faced Coated Straw Board
Bottom Board		Corrugated Medium
Core Paper		Corrugated Medium
Glass Card		Cast Coated Paper
Corrugated Paper		Corrugated Paper
Corrugated Board		Corrugated Board

2. See-through paper
"Jiankeng paper" refers to corrugated cardboard without top sheets, allowing the corrugated pattern to be visible. It is generally a semi-finished product that needs to be processed with another material mentioned above to become cardboard. There are single-corrugated Jiankeng paper (see Figure 1-9), double-corrugated Jiankeng paper (see Figure 1-10), and triple-corrugated Jiankeng paper. There are also various types. Commonly used single-corrugated types include E-corrugated and B-corrugated, such as A9, A3, K3, etc. Commonly used double-corrugated types include BC-corrugated and AB-corrugated, such as A3A3, K3A3, etc. The top sheets are generally copperplate paper or coated paper, with patterns printed on them. They are processed together with the Jiankeng paper using the corrugating process, which involves bonding them together with glue. There are automatic corrugating and manual corrugating methods.

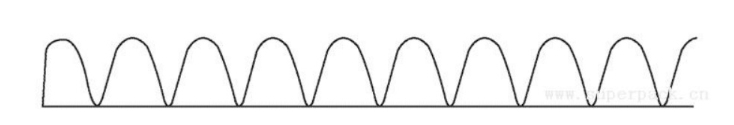

Figure 13 Single-pit paper

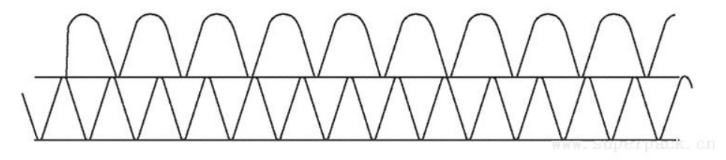

Figure 14 Double-pit paper
